Multi-Channel Chip
The Chip

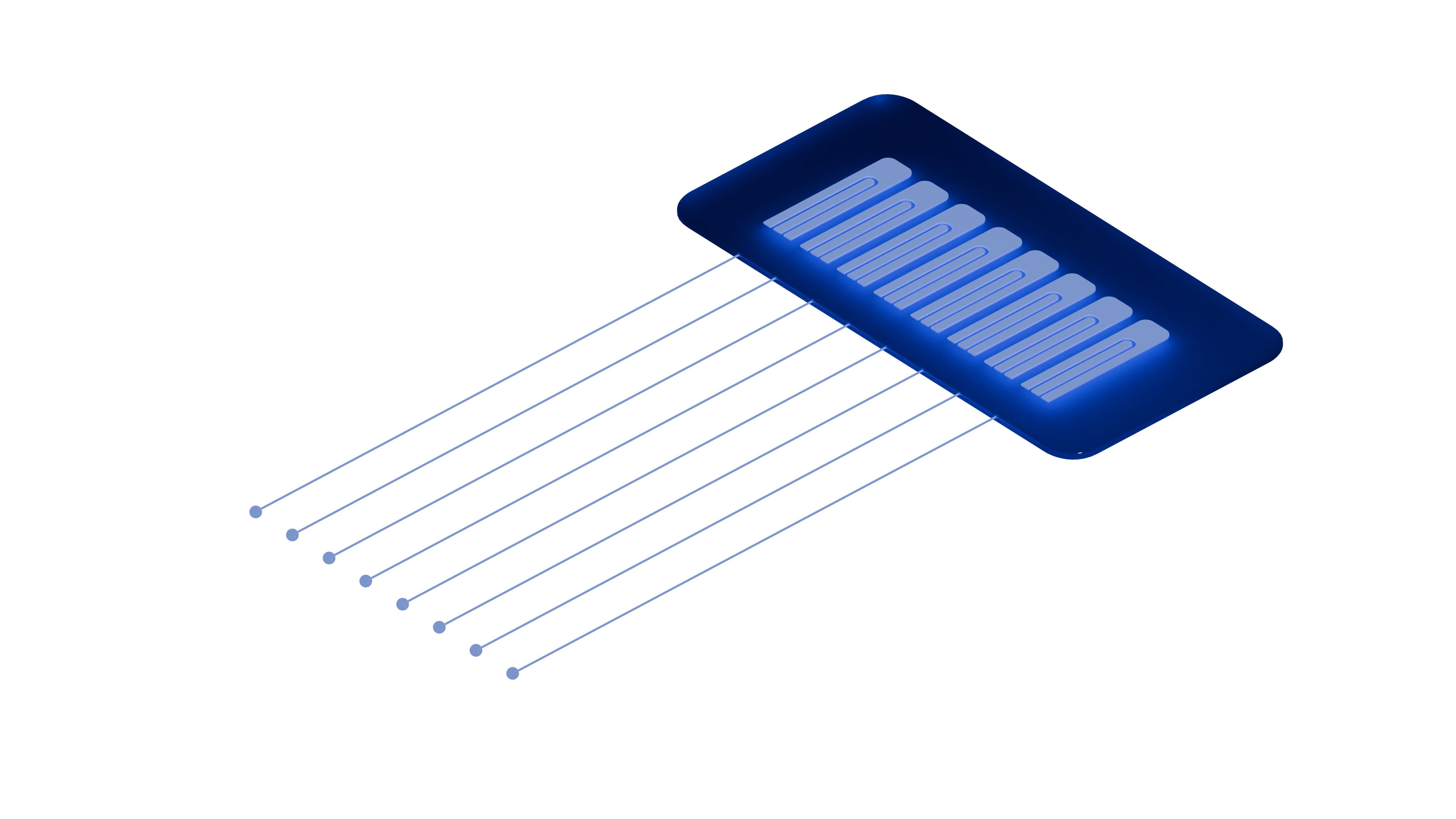

Our multi-channel chip integrates up to 8 detectors into a single sensor,
with 2, 4, 6, or 8 channel options – a capability unmatched by any other provider.
This opens the door to highly scalable applications in quantum sensing and
photonics.
The Design

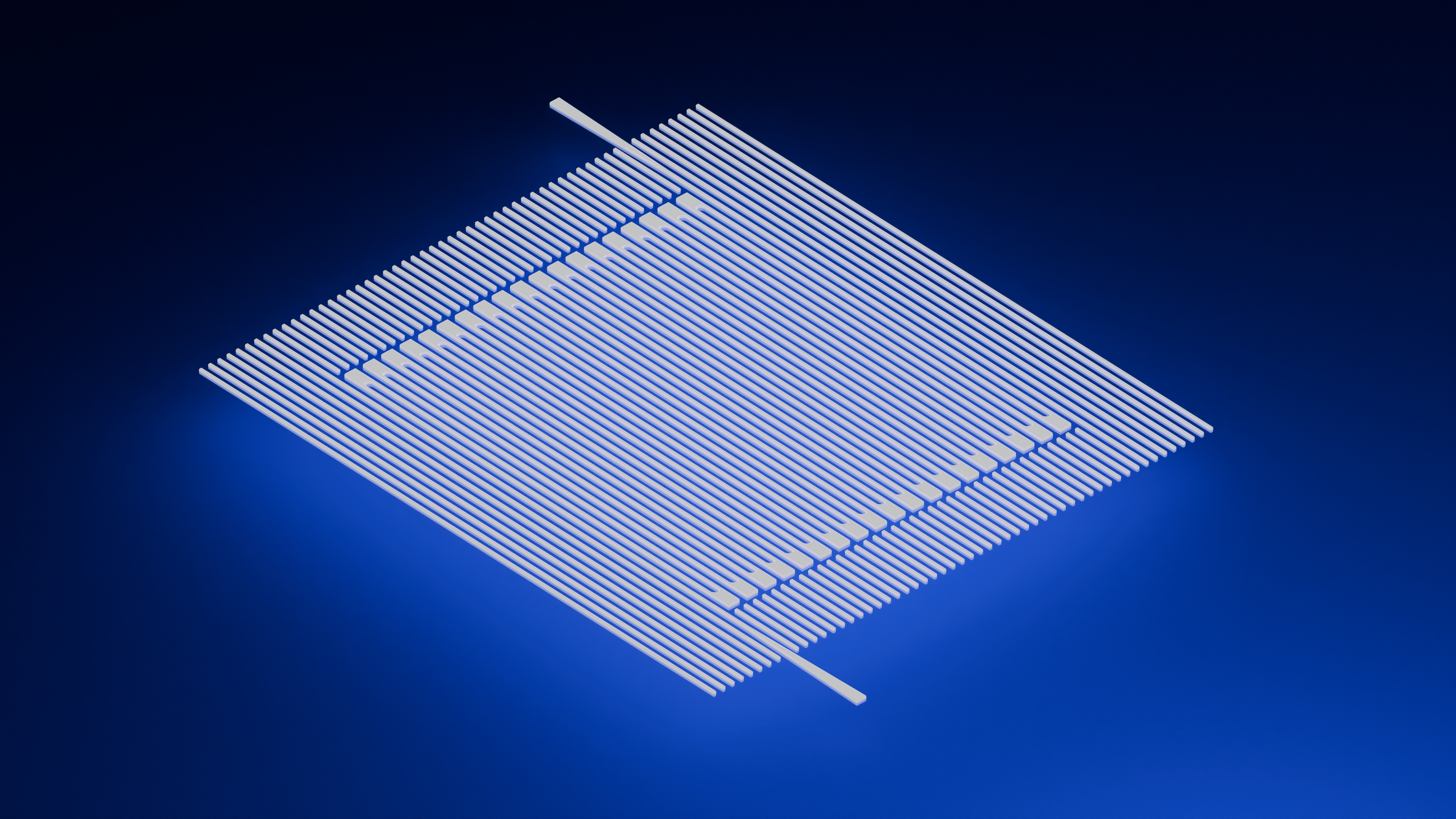

At the heart of our technology lies a precisely engineered meandering nanowire, designed for maximum precision and speed in photon detection. This patented structure can be adapted to meet a wide range of customer needs.
The Material
Our detectors combine a custom optical stack with a superconducting nanowire and high-performance readout electronics. This design ensures high detection efficiency, timing accuracy, and minimal noise.
Technical Specifications
Multi-Channel Chip
Multi-Channel Chip
| Parameter | Typical Values |
|---|---|
| Wavelength | 700 – 1600 nm |
| Number of channels per chip | 2, 4, 6 or 8 |
| System detection efficiency | > 85 % |
| Timing jitter | < 30 ps |
| Dark count rate | < 10 Hz |
| Maximum count rate | > 50 MHz |
| Dead time | < 10 ns |
| Optical fiber type | Single-mode |
